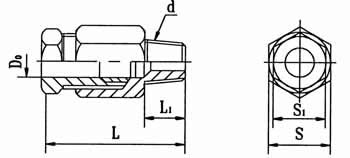

● 管接頭JB/ZQ4569-86 |
|
|
|
標記示例：
管子外徑D0為6，螺紋d為R1/8的管接頭；
管接頭6-R1/8 ZY431.1.00 |
|
代號（訂貨號） |
管子外徑(D0) |
d(R) |
L |
L1 |
S |
S1 |
重量 |
對應號 |
|
ZY431.1.00 |
6 |
1/8 |
30 |
10 |
14 |
10 |
0.022 |
YF05.1 |
|
ZY431.2.00 |
1/4 |
13 |
0.028 |
YF05.2 |
|
ZY431.3.00 |
3/8 |
31 |
14 |
0.046 |
|
|
ZY431.4.00 |
8 |
1/8 |
38 |
10 |
17 |
14 |
0.044 |
YF05.5 |
|
ZY431.5.00 |
1/4 |
13 |
0.045 |
YF05.6 |
|
ZY431.6.00 |
3/8 |
34 |
14 |
0.051 |
|
|
ZY431.7.00 |
1/2 |
17 |
0.081 |
|
|
ZY431.8.00 |
10 |
1/8 |
38 |
10 |
19 |
17 |
0.059 |
|
|
ZY431.9.00 |
1/4 |
13 |
0.058 |
YF05.9 |
|
ZY431.11.00 |
3/8 |
35 |
17 |
0.083 |
YF05.11 |
|
ZY431.12.00 |
1/2 |
36 |
17 |
0.083 |
|
|
ZY431.13.00 |
14 |
1/8 |
48 |
10 |
24 |
22 |
0.082 |
|
|
ZY431.14.00 |
1/4 |
13 |
0.096 |
|
|
ZY431.15.00 |
3/8 |
14 |
0.1 |
YF05.14 |
|
ZY431.16.00 |
1/2 |
45 |
17 |
0.098 |
YF05.15 |
|
ZY431.17.00 |
3/4 |
47 |
19 |
30 |
0.116 |
| |
|

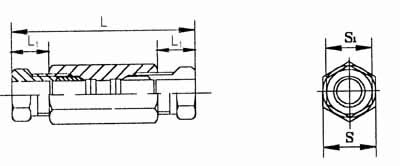

● 直通管接頭 JB/ZQ4570-86 |
|
|
|
代號（訂貨號） |
管子外徑（D0） |
L |
L1 |
S |
S1 |
重量 |
對 應 號 |
|
Y432.1.00 |
6 |
40 |
6 |
14 |
10 |
0.043 |
YF06.1 |
|
ZY432.2.00 |
8 |
50 |
7 |
17 |
14 |
0.078 |
YF06.2 |
|
ZY432.3.00 |
10 |
52 |
8 |
19 |
17 |
0.11 |
YF06.3 |
|
ZY432.4.00 |
14 |
70 |
13 |
24 |
19 |
0.18 |
YF06.4 | |
|
標記示例：管子外徑D0為6的直通管接頭；管接頭6 ZT432.1.00 |
|

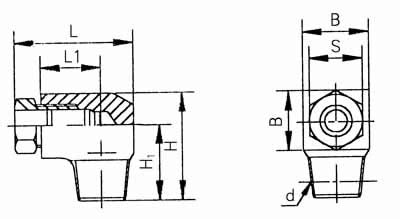

● 直角管接頭JB/ZQ4571-86 |
|
|
|
代號(訂貨號) |
管子外徑(Do) |
d(R) |
L |
B |
H |
L1 |
H1 |
S |
重量
(kg) |
對應號 |
|
ZY433.100 |
6 |
1/8 |
25 |
14 |
22 |
11 |
16 |
10 |
0.042 |
YF07.1 |
|
ZY433.200 |
1/4 |
33 |
28 |
21 |
0.046 |
YF07.2 |
|
ZY433.300 |
8 |
1/8 |
37 |
20 |
35 |
18 |
25 |
14 |
0.076 |
YF07.5 |
|
ZY433.400 |
1/4 |
0.086 |
YF07.6 |
|
ZY433.500 |
3/8 |
39 |
0.096 |
|
|
ZY433.600 |
10 |
1/8 |
37 |
17 |
0.083 |
|
|
ZY433.700 |
1/4 |
0.093 |
YF07.9 |
|
ZY433.800 |
3/8 |
39 |
0.103 |
YF07.11 |
|
ZY433.900 |
14 |
1/4 |
48 |
24 |
45 |
28 |
35 |
19 |
0.139 |
|
|
ZY433.11.00 |
3/8 |
50 |
0.159 |
YF07.14 |
|
ZY433.12.00 |
1/2 |
52 |
0.169 |
YF07.15 | |
|
標記示例：管子外徑D0為6 螺紋d為R1/8的直角管接頭；直角管接頭6-R1/8 ZY433.1.00 |
|
|
